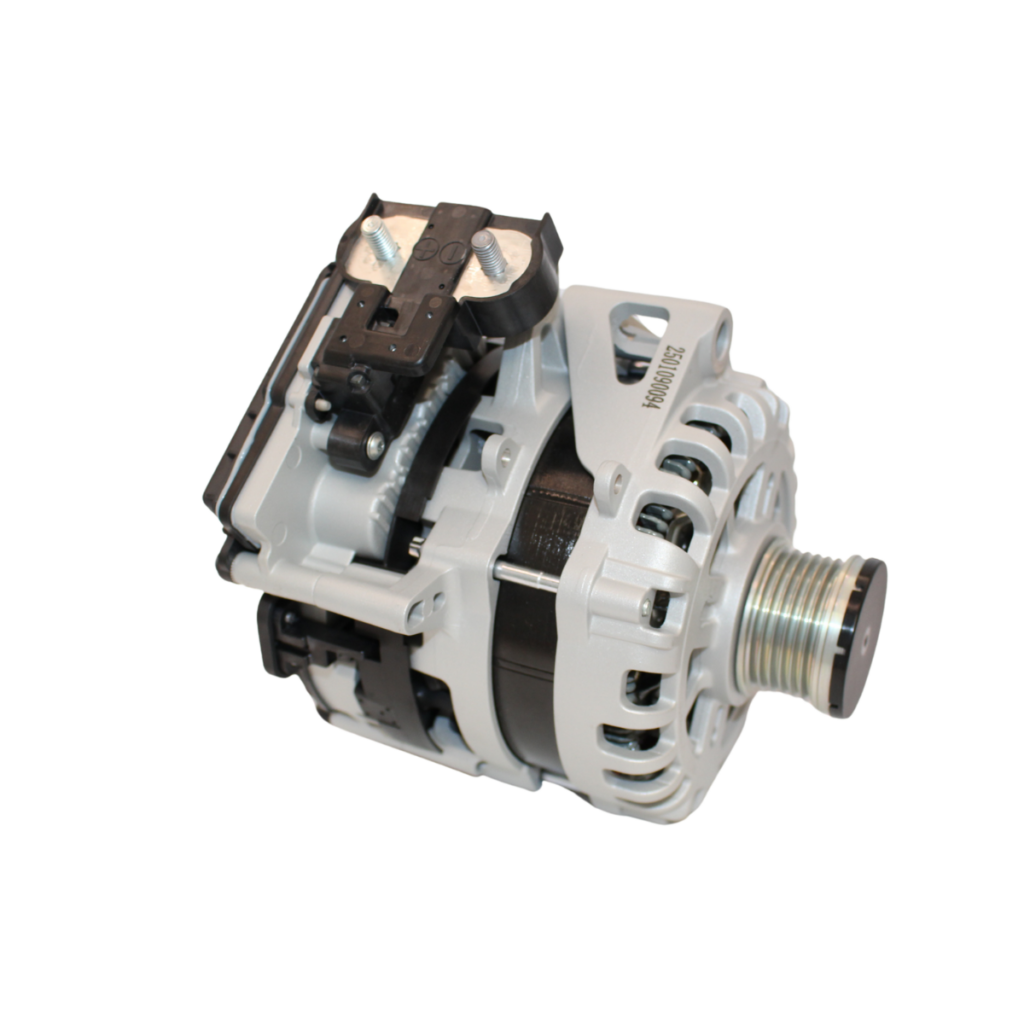

51V 6,500W PowerFit Alternator
The PowerFit inverter-based generator, replaces outdated alternators by utilizing MOSFET techology, delivering superior efficiency and safety. Designed for effortless integration, the PowerFit communicates seamlessly with the BMS, eliminating the need for programming. Its innovative design ensures uncompromised vehicle drivability, extended accessory belt life, and unmatched durability.
-
Smooth Running: Uncompromised vehicle drivability and longer accessory belt life
-
Simplified Installation: Eliminates the regulator box, reducing components and saving space
-
No Programming Required: Lithionics BMS directly controls the alternator
Mechanical
Mercedes Benz N62 Bracket Mount
2x M8x 1.25 (torque nuts to 19Nm + 2.5Nm) Power Terminals
1/0 AWG 5/16″ (Quick Cable 5955E) Recommended Ring Terminal
Dual Cooling Fans
50mm O.D., 6-grove, freewheeling pulley
Housing Material: Aluminum
Accessory List
Bracket: N62 Included with Mercedes
Volta System Controller: LSCVoA
Electrical
Regulation: Internal, requires RV-C CANbus 1/0 AWG Recommended Wire Gauge
Hair-pin Rectangular Stator Winding Up to 85% Efficiency
-30 to 105C
40.0 to 57.6V
RV-C CANbus Protocol Data Communication
8-pin, Molex MX64 Series Low Voltage Connector
Low Voltage Connector Parts:
Housing- Molex 0314049110 or 0314049100
Contacts: TW 2035170-2 or 2035170-1
